304 stainless steel fully automatic water level control float valve

Feature

Small body, large displacement

This product is small and does not take up space, and it is superior to the traditional process to effectively increase the water output, which is more than the traditional float valve.

No electricity/no manpower fully automatic working principle

When the water level in the water tower drops, the floating ball falls, and the pressure of the water in the water pipe is used to open the plunger with the sealing silicone surface in the valve body, the valve body starts the water supply: when the water level in the water tower rises, the floating ball floats up, and the connecting rod drives the plunger, and the silicone rubber The body seals the water inlet, and the valve body stops water supply. This product is used for automatic water level control of water tanks, water towers, pools, water storage tanks, solar water tanks, livestock drinking water, etc.

Safe and durable materials

304 stainless steel fully automatic water level control float valve is made of food grade material 304 stainless steel, ensuring the safety of drinking water. With an exquisite appearance and durable hard shell, it has strong friction and impact resistance, effectively increasing the service life of the product, and making friction in life no longer a problem.

Wild scope of application

Applicable ambient temperature compared with other ball valves, the stainless steel shell has a higher melting point, high-temperature resistance, corrosion resistance, waterproof and fire prevention, and is widely used. This product is suitable for water tanks water towers/pools /water pools/solar water tanks/water storage, etc.

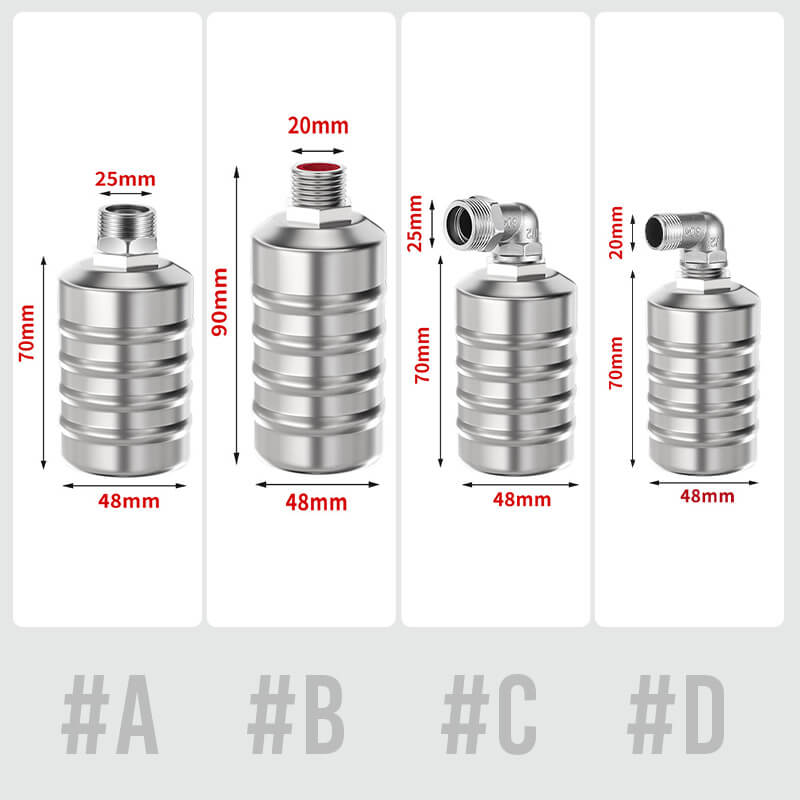

Specification

Product Material: Food grade stainless steel

Screw material: stainless steel material

Applicable temperature: 0-100 ° C

Working pressure range: ≤ 1.0MPa

Residential tap water pressure: 0.3~0.5MPa

Pressure range: 0.2~10KG

Applicable medium temperature: ≤ 1~80C

High temperature resistant medium temperature: -20 ° C~100 ℃
